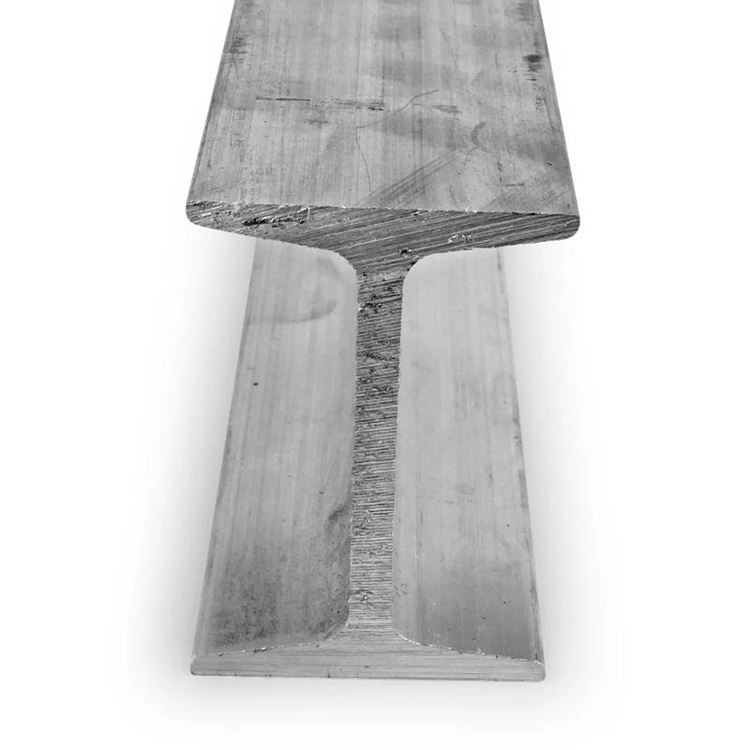

Carbon Steel I Beam Sizes
Sample: Free provided
Package Protection :1. water proof paper
2. Standard export seaworthy package + wooden pallet or as required.
|
Product |
Steel I beam |
|
|
Standard |
GB/T 700 GB/T 1591 GB/T 4179 |
Q235B/C/D,Q275B/C/D,Q355B/C/D/E,Q390B/C,Q420C,Q235NHB,Q355NHB |
|
JIS G3101 |
SS400,SS490 |
|
|
ASTM A36/A36M ASTM A572/A572M ASTM A992/A992M |
A36,A992,A572GR59\GR60\GR65 |
|
|
EN10025 |
S235JR/J0,S275JR/J0,S355JR/J0 |
|
|
Product application |
Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis. |
|
|
Sample |
Free provided |
|
|
Package Protection |
1. water proof paper |
|
|
2. Standard export seaworthy package + wooden pallet or as required. |
||
|
Model |
Height (H) |
Web Thickness (T) |
Flange Width (B) |
Flange Thickness (Tf) |
Unit Weight (Kg/M) |
Bearing Capacity (Kn) |
Section Modulus (Cm ³) |
|
I100 |
100 |
5 |
50 |
8 |
11.4 |
25.7 |
16.6 |
|
I120 |
120 |
6 |
60 |
10 |
15.3 |
34.2 |
22.5 |
|
I140 |
140 |
7 |
70 |
11 |
20.1 |
45.8 |
30 |
|
I160 |
160 |
8 |
80 |
12 |
25 |
58.2 |
38.5 |
|
I180 |
180 |
9 |
90 |
14 |
30.1 |
71.6 |
46.5 |
|
I200 |
200 |
10 |
100 |
14 |
35.2 |
86.5 |
56.6 |
|
I250 |
250 |
12 |
120 |
16 |
52.4 |
120.5 |
78.9 |
|
I300 |
300 |
14 |
140 |
18 |
70.5 |
157.8 |
105.5 |
|
I350 |
350 |
16 |
150 |
20 |
92.8 |
200.2 |
139.8 |
|
I400 |
400 |
18 |
160 |
22 |
118.3 |
246.4 |
180.4 |
I-beam is mainly divided into ordinary I-beam, light I-beam and low alloy light I-beam. Ordinary I-beam and light I-beam flanges are thick on the web plate and thin on the outside. Ordinary I-beam, light I-beam, because the cross-sectional dimensions are relatively high, narrow, so the section of the two main sleeve moment of inertia difference is large, which makes it in the scope of application has a great limitation. The use of I-beam shall be selected according to the requirements of the design drawings.
