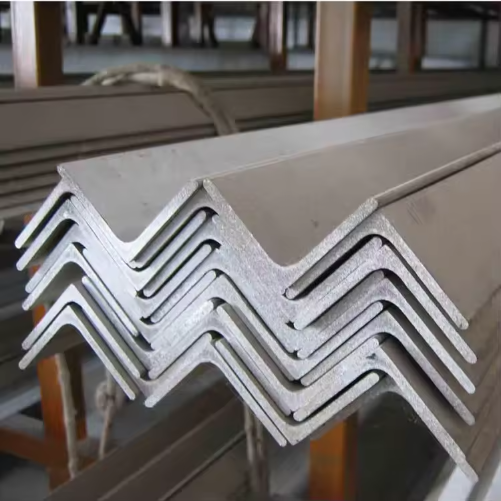

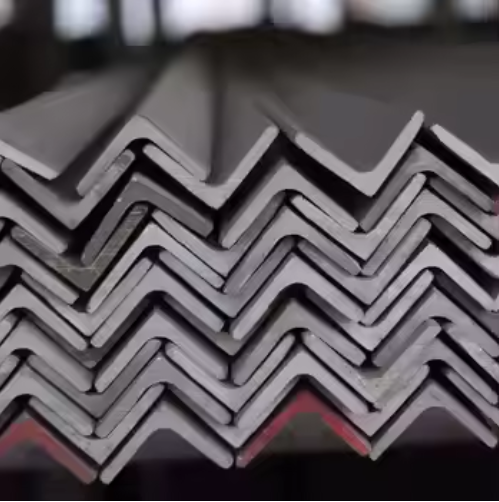

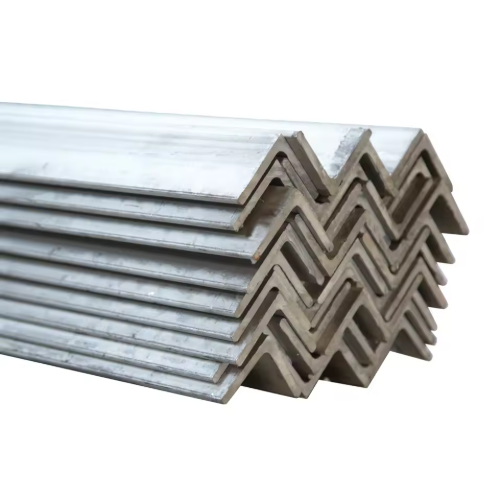

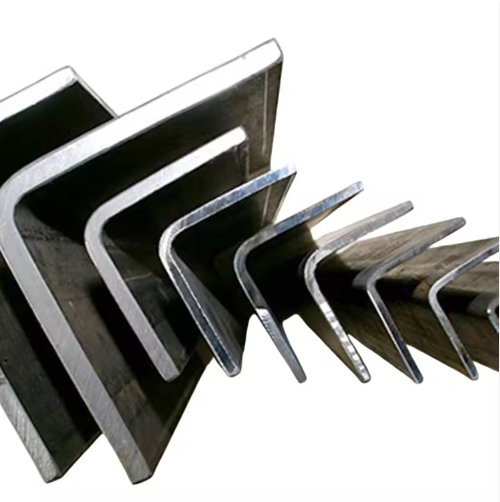

Stainless Steel Equal Angle
Stainless steel Angle steel can be composed of different forces according to the different needs of the structure, but also can be used as a connection between members.
Widely used in a variety of building structures and engineering structures, such as beam, bridge, transmission tower, lifting machinery, ships, industrial furnace, reaction tower, container rack and warehouse shelves.
Stainless Steel Angle Bar: Durable and corrosion-resistant material for long-lasting structures.
Equal Steel Angle: Suitable for both structural and decorative applications.
300 Series Steel: Meets high-quality standards with enhanced durability.
ASTM Standard: Ensures compliance with international quality standards.
±1% Tolerance: Precise dimensions for critical engineering projects.
|
Product name |
Stainless steel Angle steel |
|
Material |
201 304 316L 2205 2507 |
|
Thickness |
3mm-16mm customizable |
|
Breadth |
Size: 25mm - 200mm |
|
Length |
6 meters, customizable |
|
Shape |
L-shape |
|
Surface |
Acid white |
|
Steel Grade |
201 304 316L 2205 2507 |
|
Package |
Standard export packing |
|
Allowance |
Within ±2% |
|
Processing Service |
Bending, welding, unwinding, punching, cutting surface drawing embossing mirror plating |
|
Application Field |
Chemical equipment /Mechanical equipment |
|
Weighing |
Poundage/negotiation upon request |
|
Edge |
L-shape |
|
Technology |
Abrasive molding or plate bending |
|
Size A=B*T |
Theoretical Weight |
Size A=B*T |
Theoretical Weight |
Size A=B*T |
Theoretical Weight |
|
(mm) |
(kg/m) |
(mm) |
(kg/m) |
(mm) |
(kg/m) |
|
25X3 |
1.124 |
70X6 |
6.406 |
100X16 |
23.257 |
|
25X4 |
1.459 |
70X7 |
7.398 |
110X8 |
13.532 |
|
30X3 |
1.373 |
70X8 |
8.373 |
110X10 |
16.69 |
|
30X4 |
1.786 |
75X5 |
5.818 |
110X12 |
19.782 |
|
40X3 |
1.852 |
75X6 |
6.905 |
110X14 |
22.809 |
|
40X4 |
2.422 |
75X7 |
7.976 |
125X8 |
15.504 |
|
40X5 |
2.967 |
75X8 |
9.03 |
125X10 |
19.133 |
|
50X3 |
2.332 |
75X10 |
11.089 |
125X12 |
22.696 |
|
50X4 |
3.059 |
80X6 |
7.736 |
125X14 |
26.193 |
|
50X5 |
3.77 |
80X8 |
9.658 |
140X10 |
21.488 |
|
50X6 |
4.465 |
80X10 |
11.874 |
140X12 |
25.522 |
|
60X5 |
4.57 |
90X8 |
10.946 |
140X14 |
29.49 |
|
60X6 |
5.42 |
90X10 |
13.476 |
160X12 |
29.391 |
|
63X4 |
3.907 |
90X12 |
15.94 |
160X14 |
33.987 |
|
63X5 |
4.822 |
100X8 |
12.276 |
160X16 |
38.518 |
|
63X6 |
5.721 |
100X10 |
15.12 |
160X18 |
48.63 |
|
63X8 |
7.469 |
100X12 |
17.898 |
180X18 |
48.634 |
|
70X5 |
5.397 |
100X14 |
20.611 |
200X24 |
71.168 |
