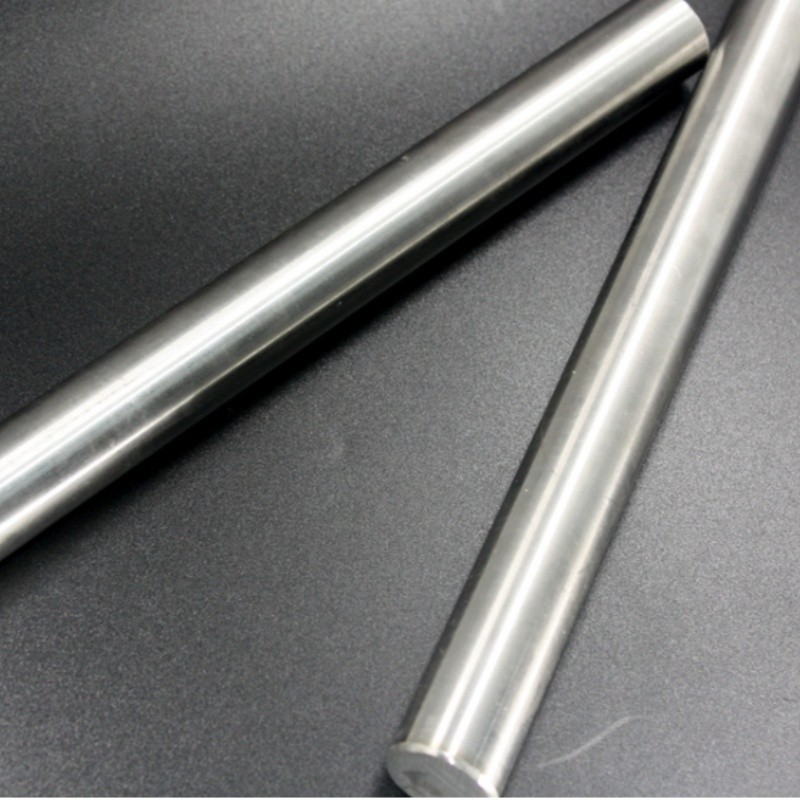

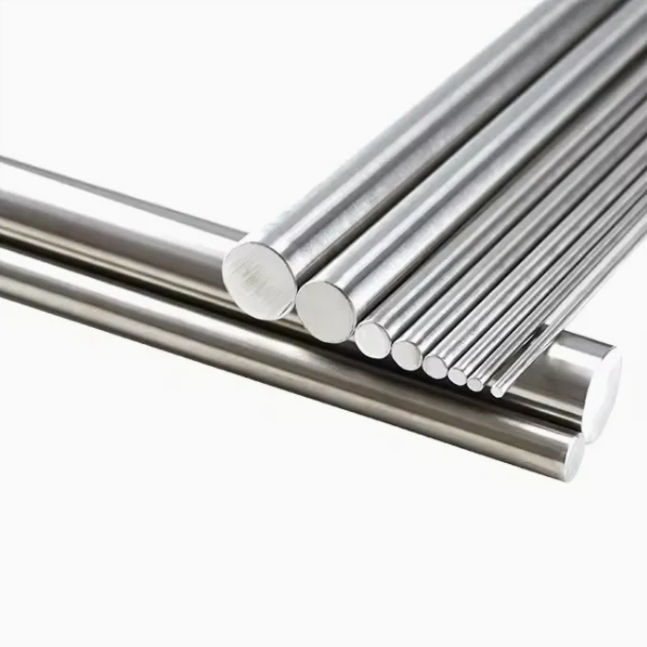

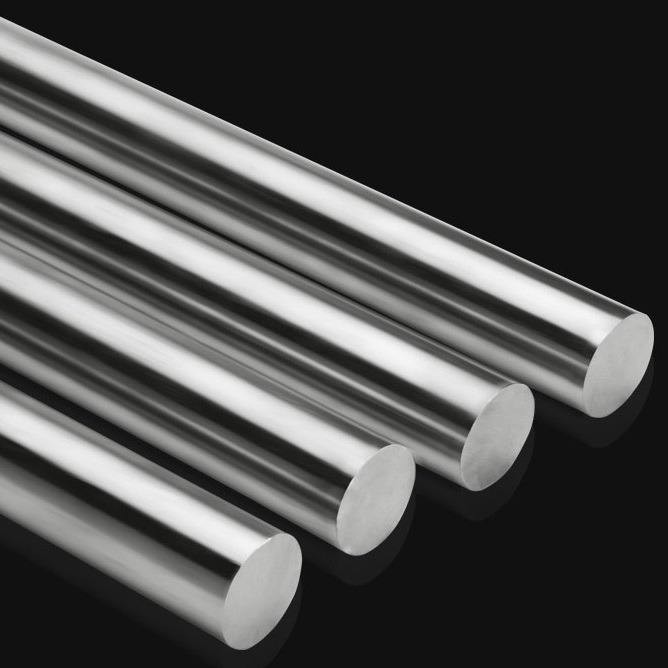

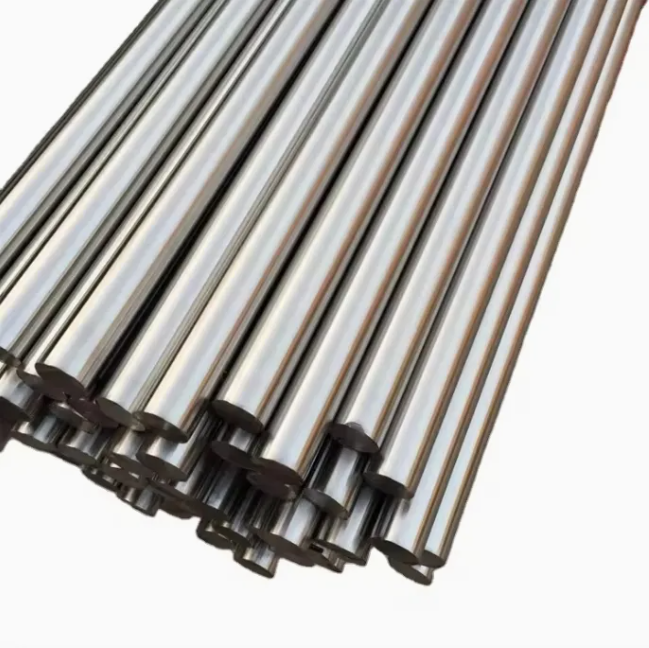

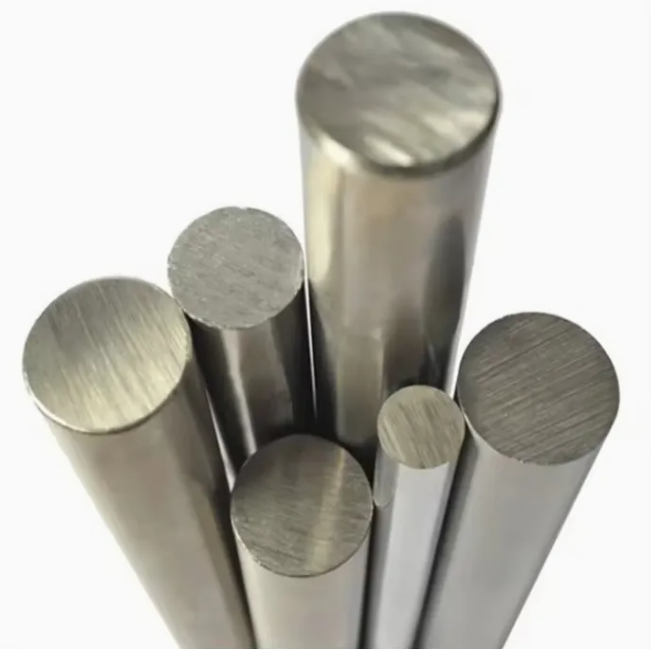

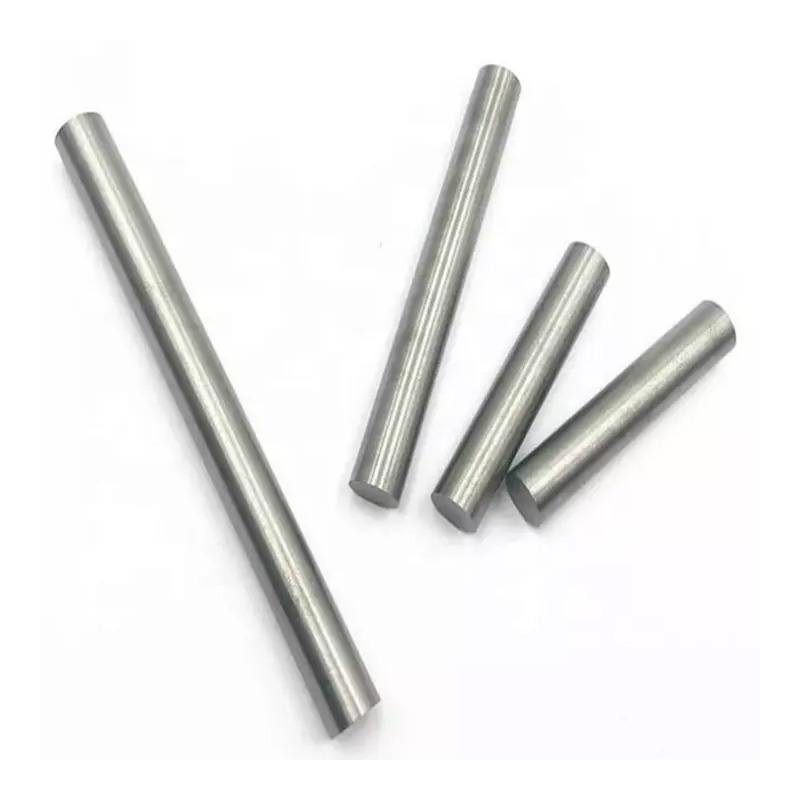

Round Bar Ss
Diameter :8-130mm
Length :1-12m or as customized
Surface treatment: Polished
|
Product name |
stainless steel round bar |
|
Diameter |
8-130mm |
|
Length |
1-12m or as customized |
|
Surface treatment |
Polished |
|
Edge |
Mill Edge, Slit Edge |
|
MOQ |
10 ton |
|
Certificate |
ISO9001,CE or as per customer |
|
Size |
According to your requirements |
|
Standard |
AISI, ASTM, GB,BS,EN,JIS,DIN |
|
Application |
Kitchenware, home appliances, construction decoration, stairs, refrigerated container,etc |
|
Advantages |
Strong corrosion and decorative effect |
|
Payment terms |
FOB, CFR, CIF, EXW,etc |
Specifications
• Diameter: 2mm-600mm
• Delivery State: Cold Drawn, Hot Rolled, Forged, Grinding, Centerless Grinding
• Finish: Bright, Polishing, Mirror, Hairline, Pickled, Peeled, Black
• Hot-selling Products:
a. Stainless Steel Black Bar
b. Stainless Steel Bright Bar
c. S.S. Hot Rolled Round Bar
d. Stainless Steel Forged Bar
• Tolerance: h9, h11
Standards
ASTM A276, ASTM A479, ASTM A484, ASTM A484M, DIN 671, DIN 1013, EN 10060, EN 10278, GB1220
Features
Anti-corrosion (the degree is susceptible to the alloys contained), heat-resistance, good cold and hot working properties, good toughness, good comprehensive performances and wide application.
Applications
Home appliances, electric appliances, construction materials, medical equipment, auto parts, petroleum, chemical application, agricultural irrigation, edible oil refinery factories, paper plants, shipyard, nuclear power plant etc.
|
Specification of Stainless Steel Round Bar |
|
|
Size |
Diameter: 2mm~500 mm; Length: 5.8m, 6m, or as requested |
|
Techniques |
Cold Drawn, Hot Rolled, Ground, Forged, Centerless Ground |
|
Surface |
Bright, Polishing, Mirror, Hairline, Pickled, Peeled, Black |
|
Theoretical Weight (kg/m) |
Diameter (mm) x Diameter (mm) x 0.00623 |
Main Grades
|
Stainless Steel Round Bar |
|
|
300 Series Stainless Steel Grades |
301, 302, 303, 304/L, 304H, 309/S, 310/S, 316/L/Ti, 317/L, 321/H, 347/H |
|
400 Series Stainless Steel Grades |
409/L, 410, 416, 420, 440C, 430, 431 |
|
Duplex Stainless Steel Series |
2205, 2507 |
|
Super Alloy Series |
904L, 17-4PH, 17-7PH, F51, F55, 253MA, 254SMO, Alloy C276, N08367, N08926, Monel400, Inconel625, Inconel718 |
|
Standard |
ASTM A276, A484, A564, A581, A582, EN 10272, JIS4303, JIS G 431, JIS G 4311, and JIS G 4318 |
Tolerance for Cold Drawn Round Bar
|
Size (mm) |
Tolerance Rank |
|||||
|
H8 |
H9 |
H10 |
H11 |
H12 |
H13 |
|
|
3 |
0~-0.014 |
0~-0.025 |
0~-0.040 |
0~-0.060 |
0~-0.10 |
0~-0.14 |
|
3 ~ 6 |
0~-0.018 |
0~-0.030 |
0~-0.048 |
0~-0.075 |
0~-0.12 |
0~-0.18 |
|
6 ~ 10 |
0~-0.022 |
0~-0.036 |
0~-0.058 |
0~-0.090 |
0~-0.15 |
0~-0.22 |
|
10 ~ 18 |
0~-0.027 |
0~-0.043 |
0~-0.070 |
0~-0.11 |
0~-0.18 |
0~-0.27 |
|
18 ~ 30 |
0~-0.033 |
0~-0.052 |
0~-0.084 |
0~-0.13 |
0~-0.21 |
0~-0.33 |
|
30 ~ 50 |
0~-0.039 |
0~-0.062 |
0~-0.10 |
0~-0.16 |
0~-0.25 |
0~-0.39 |
|
50 ~ 80 |
0~-0.046 |
0~-0.074 |
0~-0.12 |
0~-0.19 |
0~-0.30 |
0~-0.46 |
